Distributed Temperature Sensing System (DTS)
-

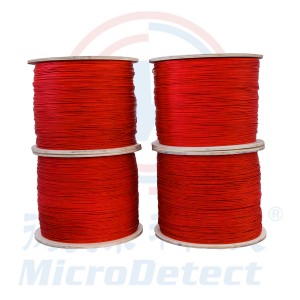

Optic fiber sensor cable WT-GL-101
● Metal armored spiral sheath.
● Work with long term operation at -40℃ ~ +120℃ environment.
● Anti-corrosion, anti-tensile, abrasion resistant.
-

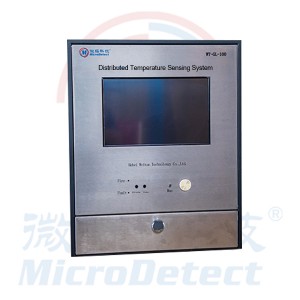

Optic fiber Linear heat detector controller WT-GL-100C
● Fast: monitor and position alarms quickly.
● Distributed: monitor each 1m changes along 20km.
● Precise: Sampling interval 1m, Temperature resolution ±0.1℃, Temperature accuracy ±1℃.
● Compatible: using RS485, RJ45, build-in relay to connect with fire alarm controllers.
● Safe: intrinsic safe by using optical signal.
-

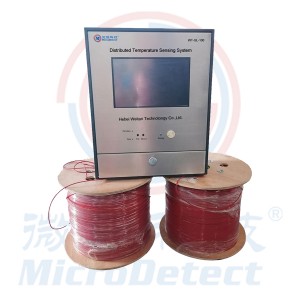

Distributed Temperature Sensing (DTS) System
●Combined with DTS optic fiber controller, sensitive part (sensor optic fiber cable).
● Real-time monitoring, accurate location.
●Gathered photoelectric signal monitoring and computer technology as one.
●Widely used to fire detection. -
Distributed Temperature Sensing System (DTS) Controller WT-GL-100C
● 4 channels, 5km/channel.
● Fast: monitor and position alarms quickly.
● Distributed: monitor each 1m changes along 20km.
● Precise: Sampling interval 1m, Temperature resolution ±0.1℃, Temperature accuracy ±1℃.
● Compatible: using RS485, RJ45, build-in relay to connect with fire alarm controllers.
● Safe: intrinsic safe by using optical signal.
-
JTW-LD-WT302 Analog Type Linear Heat Detector
● Combined with Control Unit, EOL Box and Linear Heat Detection Cable.
● It can be reused if alarming in the range of safe temperature while the LHD cable is not damaged.
● Fixed alarm temperature: 85℃
● ≤200 Meters/ Set.
